Rescuing a Dewtron Gipsy

Community Project

The Dewtron Gipsy is one of those synthesizers that almost slipped through the cracks of history. A small British instrument from the early 1970s, it was built from plug-in modules sold to studios and hobbyists rather than mass-marketed to the public. Very few examples have survived, and even fewer are documented with both photos and sound. This is the story of one such Gipsy: its rediscovery on Reddit, its repair by a Toronto synth shop, and its preservation through a structured sample library, all released under a Creative Commons Attribution license.

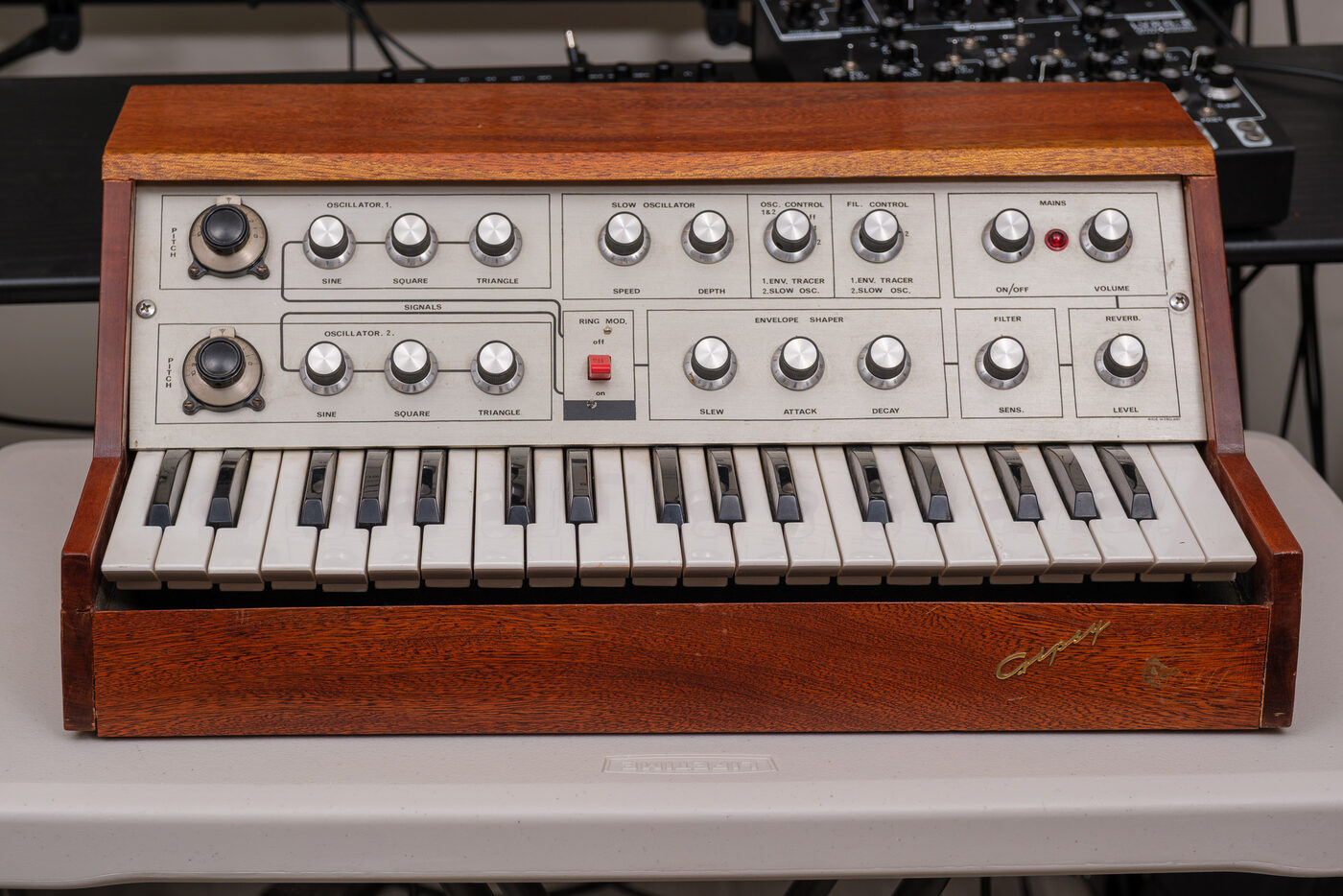

Dewtron Gipsy front panel — The Dewtron Gipsy, front panel.

Dewtron and the Gipsy: historical context

Dewtron was a small UK company founded by engineer Brian Baily in the early 1970s, focused on affordable modular synthesizer components. Rather than competing with ARP, Moog, or EMS in the high-end instrument market, Dewtron targeted professional studios, organ builders, and DIY enthusiasts with plug-in boards: VCOs, filters, ring modulators, envelope generators, mixers, and spring-reverb drivers.

Period adverts in magazines such as Practical Electronics (October 1971), Studio Sound (1973), and Beat Instrumental (September 1973) show Dewtron marketing these boards as interchangeable building blocks for custom systems. Customers could integrate them into consoles, organs, or standalone boxes. The better-known Dewtron Apollo A1 and Gipsy synths were, in essence, collections of those same modules built into complete instruments.

Community research gathered in places like ModWiggler and the Electronic Music Wiki paints a consistent picture: Dewtron gear was inexpensive, a bit rough around the edges, and often sold in relatively low quantities compared with the big names of the era. Much of it disappeared into custom installations, which helps explain why surviving examples are so rarely seen.

Owners on forums such as ModWiggler and Reddit describe Dewtron synths as rare, sonically raw, and difficult to keep in calibration because most of the modules are fully potted in resin. In practice, each surviving instrument tends to develop its own quirks over time, depending on how far the tuning has drifted and which parts of the signal path are still behaving themselves. In the case of the Gipsy documented here, the oscillators will not tune together across the keyboard and the instrument will not go very low in pitch, making it hard to judge what the original low-end response might have been. What is captured in the sample library is therefore the sound of this specific, partially-rescued unit, not an idealized “factory-fresh” Gipsy.

A metal badge on the wooden cabinet credits:

Cabinet work & assembly by Electronic Sound Treatments (Bournemouth)

which suggests a collaboration between Dewtron’s electronics and a local cabinet maker building finished instruments around the company’s modules.

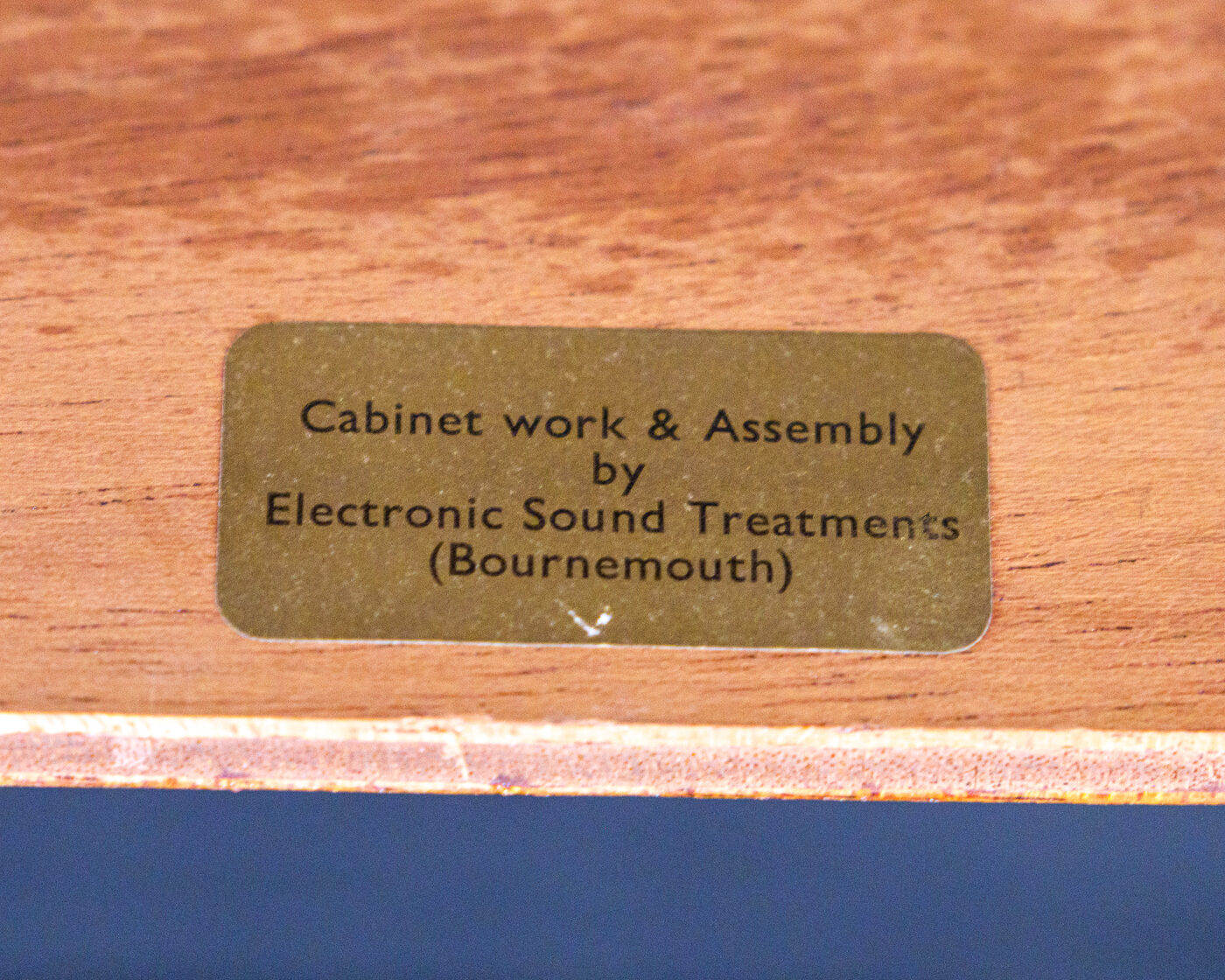

Cabinet badge crediting Electronic Sound Treatments of Bournemouth — The cabinet badge: cabinet work and assembly by Electronic Sound Treatments, Bournemouth.

Discovery via Reddit

In 2024, synth owner Andrew McGirr posted photos of an unidentified wooden-cased monosynth to the r/synthesizers subreddit with a simple question: “Does anyone know what this is?”

The panel, with its two oscillators, ring-mod switch, Vernier dials and Gipsy script, looked familiar to a handful of vintage-synth enthusiasts. The consensus quickly formed that this was a Dewtron Gipsy, one of the company’s rare complete instruments. A follow-up thread, “Dewtron Gipsy part 2,” documented Andrew’s efforts to find out more and decide what to do next.

Community members suggested he contact Frequency Freaks, the Toronto-based synthesizer workshop series, and its founder and organizer Paul Stillwell, for help assessing and documenting the instrument. Frequency Freaks is a monthly gathering of synthesists, performers, and builders of all levels, with live performances, demonstrations, technical deep-dives, and lots of informal discussion. It turned out to be the perfect environment for turning a Reddit mystery into a preservation project.

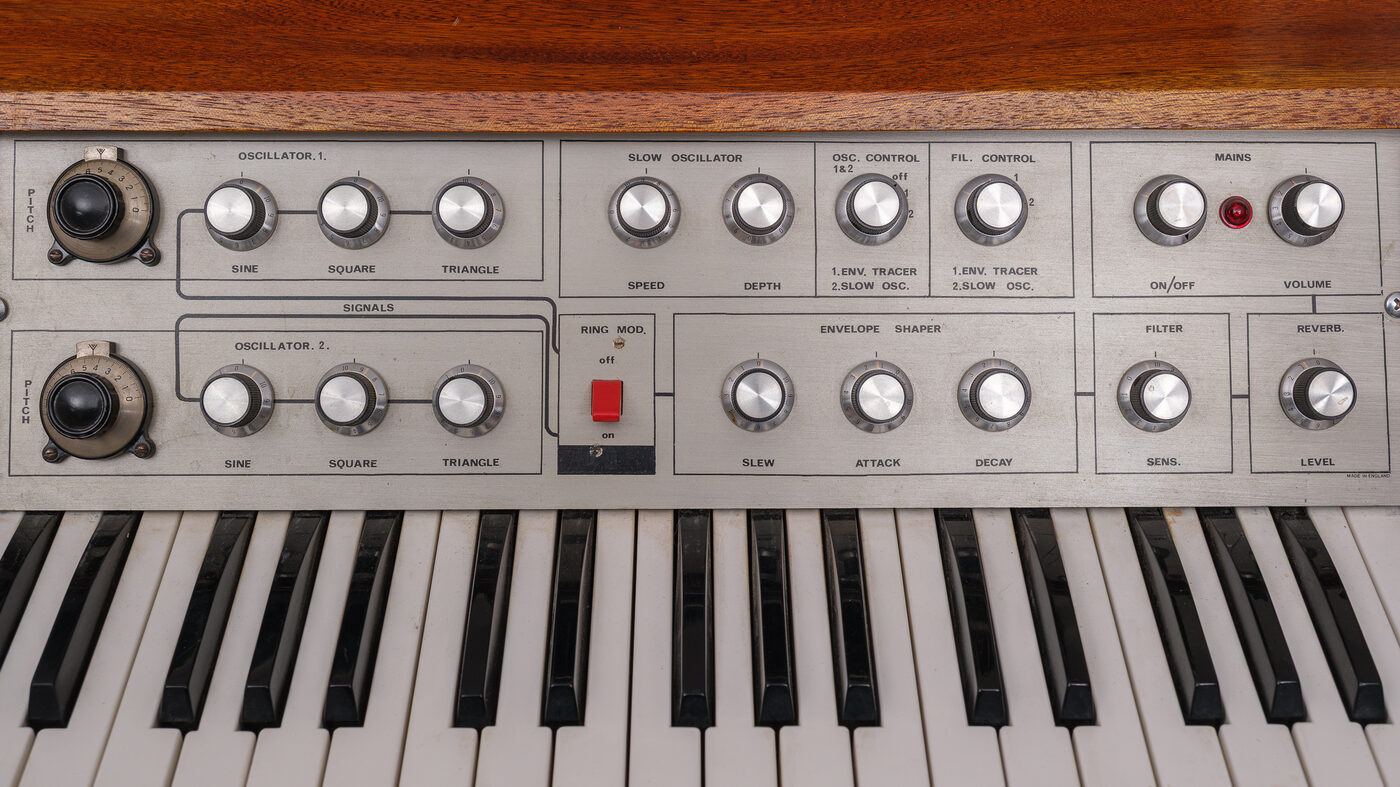

Close-up of the Dewtron Gipsy front panel controls — Front panel close-up: two oscillators, Vernier dials, ring mod, and the Gipsy script.

The rescue: repair at Synths When

By the time Andrew brought the Gipsy to Toronto, it was in rough condition. The synth was not reliably producing sound, several controls were either intermittent or non-functional, and decades of dust and oxidation were evident. Andrew entrusted the instrument to Synths When, a local synth repair shop run by Jay Lemac. Jay and his team carefully brought the Gipsy back to life, enough that it could once again speak with its own voice.

The repair process also underlined why Dewtron instruments are so challenging to service:

Most of the critical boards, the oscillators, filter, and other core modules, are completely potted in resin. This protects components and intellectual property but makes calibration and component-level repair practically impossible.
Wiring is done on old-school tag strips. It is generally neat and logical, but time and environmental exposure take their toll.
The spring reverb tank in this unit is missing one of its springs, limiting how accurately its original effect can be reconstructed.

Thanks to Synths When, the instrument is once again capable of generating sound, although “fully restored” would be too strong a claim. That limitation drove the decision to focus on preservation through sampling.

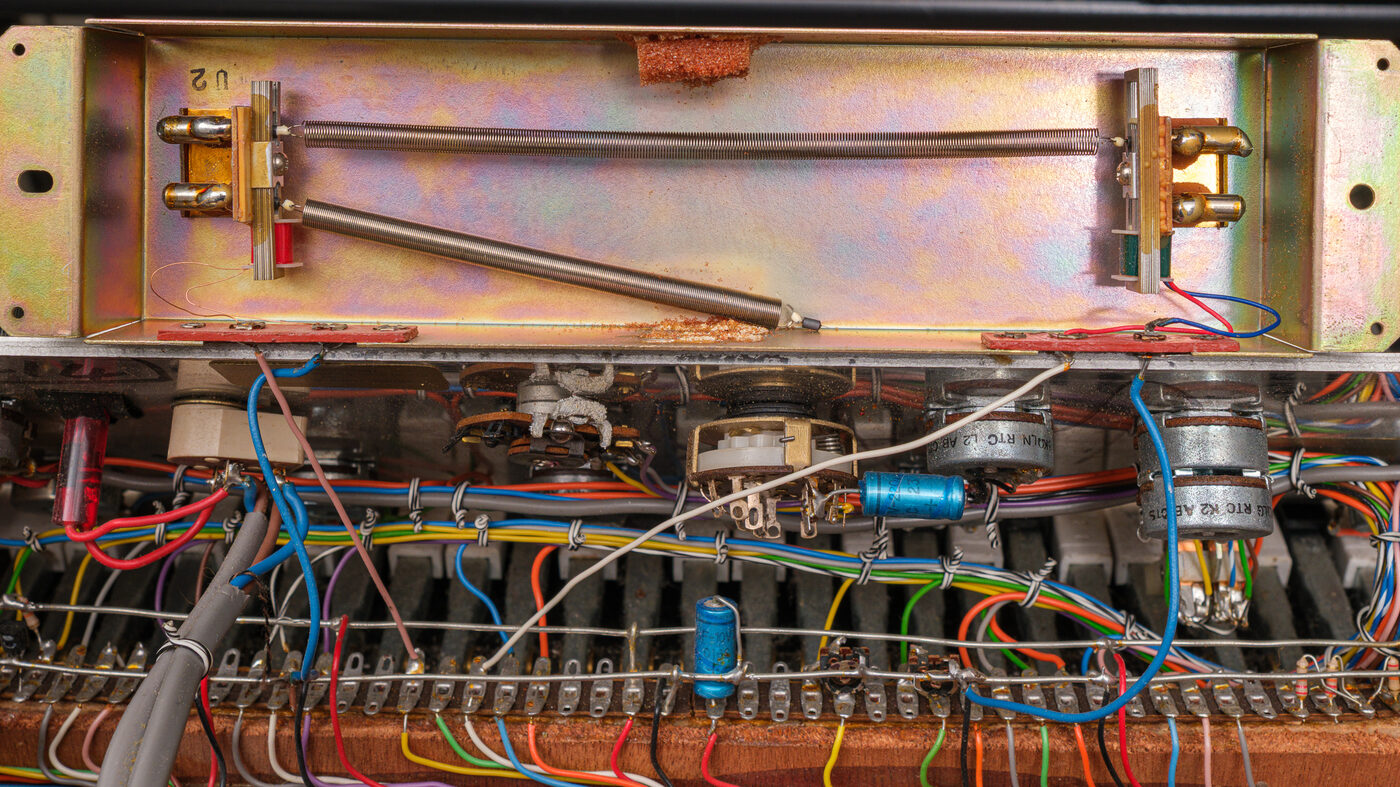

The spring reverb tank, missing one spring — The spring reverb tank, missing one of its springs.

Features and quirks of this specific Gipsy

On the front panel, this Dewtron Gipsy offers:

Two oscillators (Oscillator 1 and Oscillator 2), each with selectable sine, square, and triangle waveshapes.
A shared Slow Oscillator (LFO) with Speed and Depth controls.
An Oscillator Control section to route modulation.
An Envelope Shaper with Slew, Attack, and Decay.
A simple Filter section with a “Sens.” control.
A Ring Mod on/off switch.
A Reverb section driven by an internal spring tank.
Vernier dials providing fine pitch control for each oscillator.
A three-octave keyboard with traditional on/off keying and no velocity sensitivity.

Internally, the instrument is assembled from Dewtron modules mounted behind the front panel and fully potted in resin. Tag-strip wiring connects the modules to the keyboard contacts and rear panel jacks. Hand-written markings such as “730414” appear inside the wooden case, but there is no formal model-number plate beyond the Gipsy script on the front.

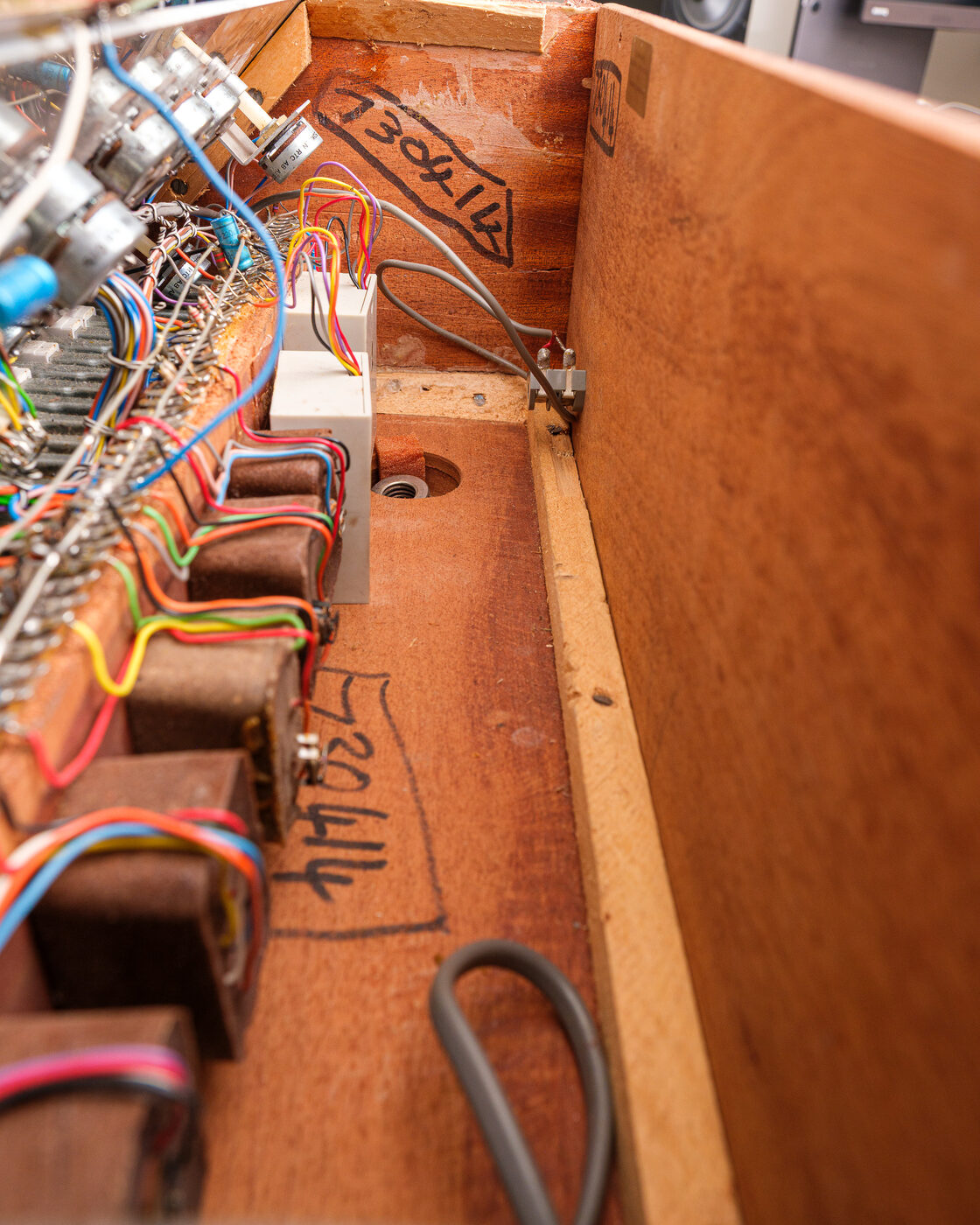

Hand-written markings inside the wooden case — Hand-written markings inside the case, with no formal model-number plate.

The unit’s behaviour is very much that of an ageing, partially serviceable Dewtron:

The oscillators drift badly relative to each other and refuse to track together across the keyboard.
The global tuning range is limited on the low side. This particular Gipsy cannot be tuned very low, which makes it impossible to say with confidence how the original low end would have sounded.
The filter only “kind of” works, providing some tonal change but not behaving like a clean, well-damped resonant filter.
Many pots are scratchy, and mechanical wear is visible on keys and contacts.
The spring reverb tank, missing one spring, behaves more like a quirky ambience generator than a classic smooth spring.

In other words: not a precision instrument, but a very characterful one.

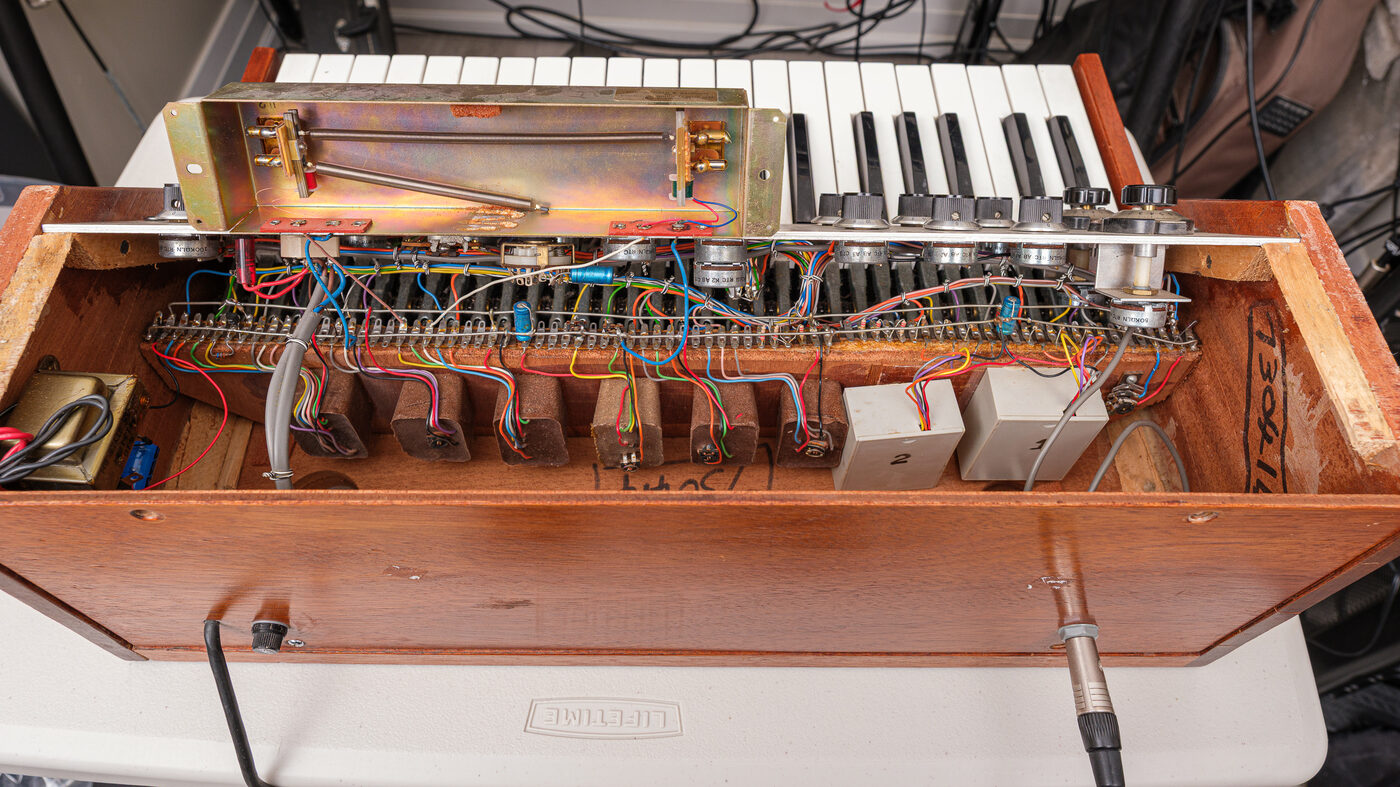

Inside view of the Dewtron Gipsy showing modules and wiring — Inside: Dewtron modules and tag-strip wiring behind the front panel.

Why sample instead of attempting full restoration?

Given the potted modules and limited access to calibration points, there is only so much that any technician can do without risking irreversible damage. Further attempts to “fix” the Gipsy would likely involve destructive work on the resin-encased modules, with no guarantee of success and a real risk of silencing the instrument permanently.

Under those constraints, sampling presents a pragmatic way forward:

Capture the real sound of this specific Gipsy while it is still functional.
Make that sound available to others who might never encounter a Dewtron instrument in person.
Avoid the ethical and practical issues of destructive restoration on a rare piece of synth history.

The result is not a clinical, laboratory-grade representation of what a brand-new Gipsy might have done. Instead, it is a documented snapshot of this Gipsy, in its current, imperfect state.

The sampling sessions and file structure

For the sampling work, the goal was to balance authenticity with usability. Because the oscillators cannot be tuned together and drift significantly over time, a per-oscillator, per-waveshape strategy was chosen rather than trying to capture “ideal” dual-oscillator patches.

Each oscillator was recorded on its own, one waveshape at a time, using the synth’s own keyboard. Notes were recorded at positions across the keyboard as close to octave spacing as the tuning allowed. There is no velocity information; like most synths of its era, the Gipsy’s keyboard is strictly on/off.

To make the library practical in a wide range of workflows, samples were rendered at multiple sample rates and bit depths, and several “views” of the sound were captured: raw oscillator tones (Osc1 and Osc2 separately), oscillators through the ring modulator, and oscillators through ring mod plus filter. The folder layout reflects this, with a set of complete unedited originals at 96 kHz / 32-bit float, and tuned single-note sets for each oscillator, the ring mod, and the ring-mod-plus-filter path at three standard formats (44.1k/16, 48k/24, and 96k/24). Within each folder, filenames indicate the oscillator, waveshape, and target note (for example, Osc1_Square_C3.wav). No additional processing has been applied other than gentle level management and pitch correction for the tuned sets. EQ, compression, and effects are left entirely to the user.

Raw versus tuned material

The library is built around two complementary ways of working with the Gipsy. The original 96k/32b recordings are long, continuous takes organized by oscillator and waveform, ideal for analyzing tuning drift, cutting custom sample sets, or studying the noise and artefacts of this specific instrument. The tuned folders offer individual samples tuned as closely as possible to the nearest Western pitch, designed for quickly building playable instruments in SFZ, Kontakt, DecentSampler, Ableton Sampler or Simpler, and similar tools. Because oscillator 1 and 2 are separate, you can recreate the “almost in tune, always drifting” character in a controlled way by layering and detuning samples inside your sampler. This dual approach respects the historical instrument while acknowledging that most musicians need reasonably in-tune material to actually write music.

Using the Gipsy in your own music

There is no single correct way to use these samples, but a few ideas may help you get started. Build a basic monophonic instrument from the Osc1 or Osc2 tuned folders and use it as a raw-tone source for modern effects chains. Layer Osc1 and Osc2 versions of the same note, detuned slightly in your sampler, to mimic the unruly dual-oscillator behaviour of the hardware, with the option to tame or exaggerate it. Reach for the Ring Mod and Ring Mod Filter samples when harsher or more percussive sounds are needed; they work especially well for drones and experimental textures. And for sound design or education, compare the tuned samples against segments of the original recordings to hear how much the instrument wanders over time.

If you create SFZ, Kontakt, or DecentSampler definitions, Ableton racks, or other instrument presets based on this library, contributing them back to the project will help other musicians make more of this almost-forgotten synth.

We hope you enjoy and have fun with the Dewtron Gipsy Samples!

Credits

This project is the result of a small but enthusiastic chain of events and people:

Andrew McGirr, owner of this Dewtron Gipsy. Andrew found the synth, shared it with the world via Reddit, and chose to preserve it rather than let it gather more dust.
Paul Stillwell, founder and organizer of Frequency Freaks. Paul performed the recording sessions, editing, tuning, and organization of the sample library, and prepared the documentation and photos.
Jay Lemac and the team at Synths When, who brought the Gipsy back to the point where it could reliably make sound again, making the sampling sessions possible.

If you use these samples in a project or create derived instruments, please include a credit line such as:

“Dewtron Gipsy samples by Paul Stillwell and Andrew McGirr.”

License

The sample library and accompanying documentation are released under the Creative Commons Attribution 4.0 International (CC BY 4.0) license. You are free to share and adapt the material for any purpose, even commercially, as long as you give appropriate credit, link to the license, and indicate if changes were made. Recommended attribution: “Dewtron Gipsy samples by Paul Stillwell and Andrew McGirr.”

Full license text: https://creativecommons.org/licenses/by/4.0/
